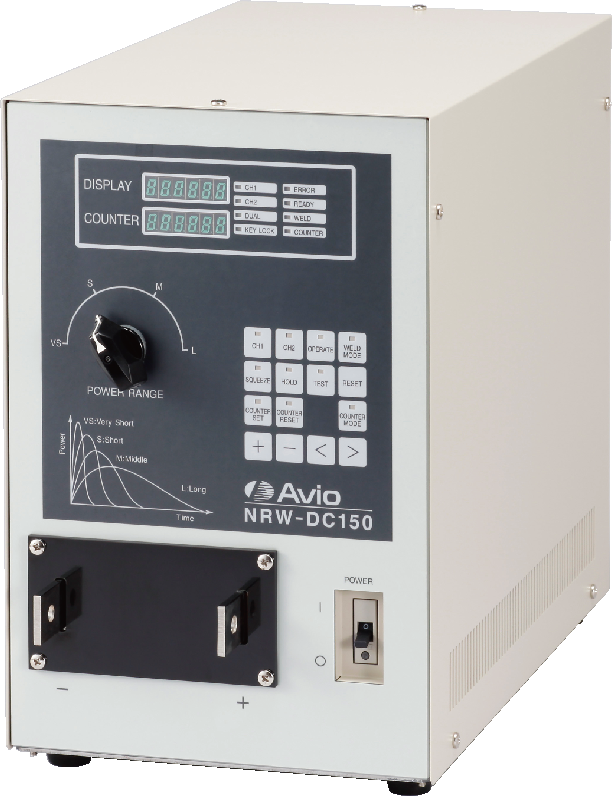

Avio 直流储能电阻焊接机

最适合于电池片的焊接和铝、铜等的焊接！

NRW-DC150	POWER RANGE	配置双脉冲功能！ Dual Pulse Function

■　大功率电容器的充电能量瞬间放电的方式

Rapid Release of Energy Using High Capacitance Energy Storage.

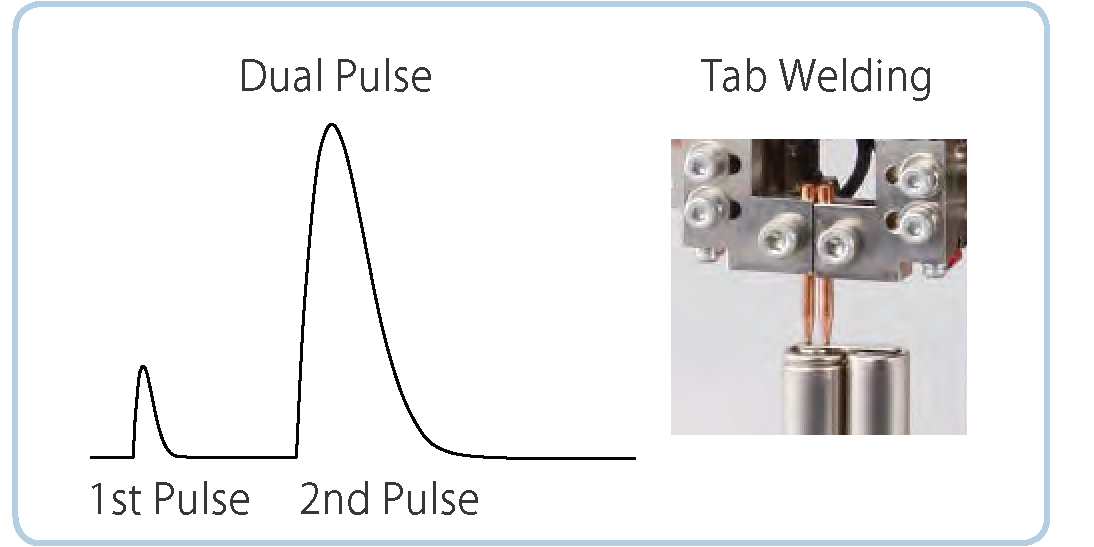

■　双脉冲通电功能可抑制焊接火花而得到稳定的质量

Dual Pulse Function Minimizes Welding Spark and Improves Welding Quality.

■　适合于铝、铜等不同种类焊接困难的金属

Suitable for Aluminum,Copper,as well as other Welding Materials.

■　短时间通电方式抑制工件的变形、烧损，适合小型部件的精密焊接

Deformatiom and Burning is Minimized due to Short,Concentrated Energy Burst.

■　高速充电提高生产效率（焊接速度75W · S时，120次/分钟）

Fast charging time improves productivity(Welding Speed75W·S 120Shots/min).

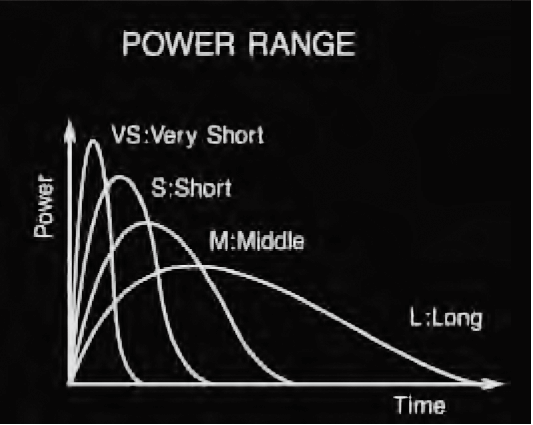

■　VS（Very Short）模式实现150W · S的设定可得到200W · S的峰值电流

VS（Very Short）mode allows to obtain peak welding current same as 200W·S type.
