数字式压力计FG-400
■ 小型、轻便
■ 三种供电方式
■ 显示保持功能
■ 简单易行的零位调整
■ 自动识别压力传感器的种类
■ 判断（上限、下限）功能
Avio 数字式压力计
小型、轻量、便捷

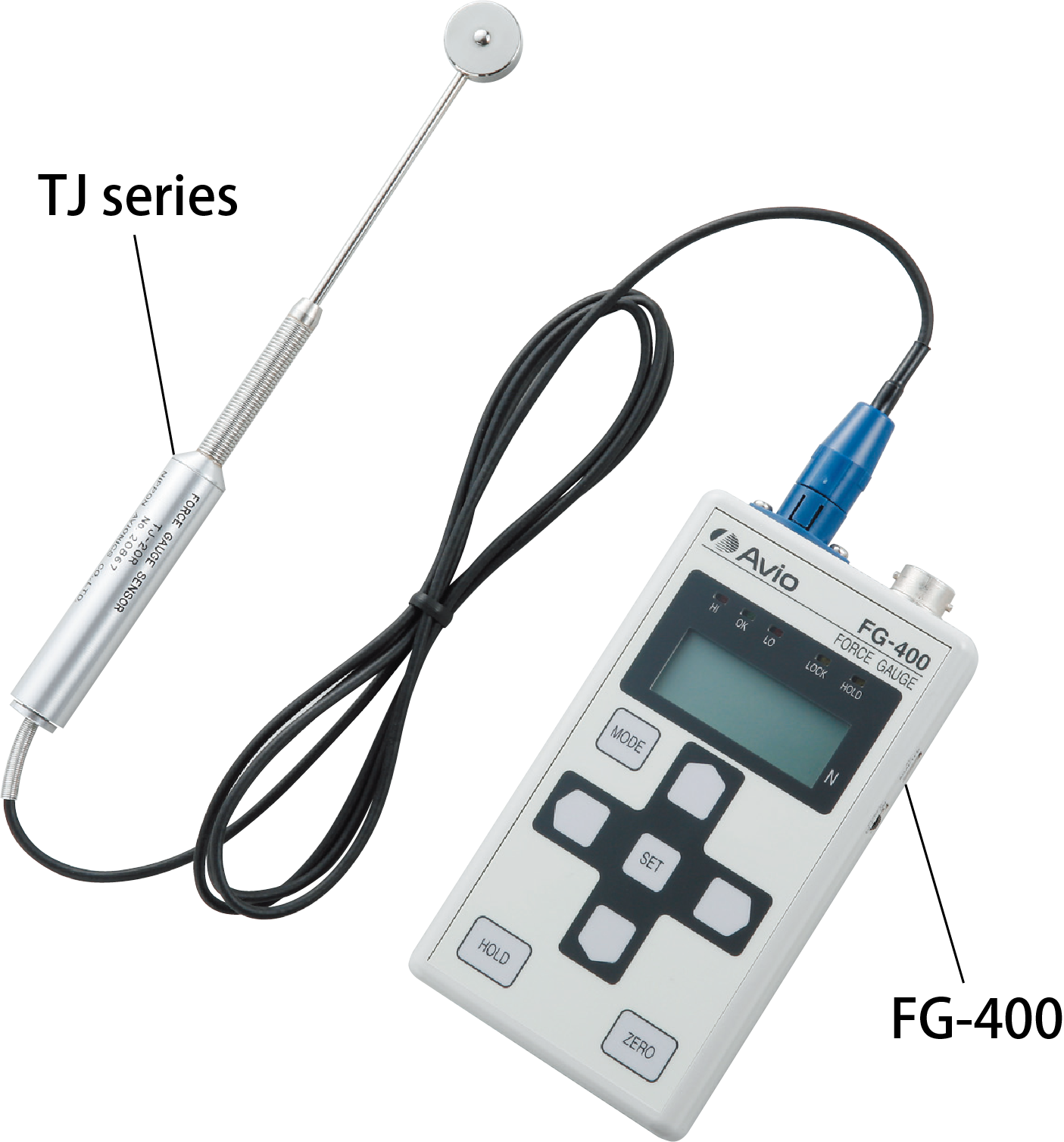

❖ FG-400与TJ系列分别销售。
FG-400 and TJ serles are sold separately.
■ 小型、轻便
Compact,and light weight.
■ 三种供电方式
3 wanys power supply.
■ 显示保持功能
Display hold function is equipped.
■ 简单易行的零位调整
Easy zero adjustment function.
■ 自动识别压力传感器的种类
Automatic recognition of the type of sensor.
■ 判断（上限、下限）功能
Judgement function(Hi & Low)is equipped.
传感器形状 Sensor Tip Shape
| 项目 | Items | FG-400 |
| 表示功能 | Display | 4 digit (0000-9999)N:newton |
| 零位调整 | Zeroing Adjustment | 使用SW自动调整 Automatic regulation by switching |
| 保持功能 | Hold Function | 抽样值/峰值 sample/peak |
| 信号接口 | Interface | RS-232C |
| 电源 | Power Source | 5 号电池、镍氢电池、专用交流电源适配器（AC100V~240V）1∅ |
| 尺寸、重量 | Dimension/Weight | W77×D140×H27mm ≈300g |
❖ 有关FG-400的校对证明书的发行，需要额外收费对应。
Calibration certificate for FG-400 is not free of charge.Please ask sales reles reles representative for quotation.
| 项目 | Items | TJ-1A | TJ-20R or TJ-20A | TJ-100R or TJ-100A | TJ-500R or TJ-500A |
| 测量范围 | Measurement Range | 0~10N | 0~196N | 0~980N | 0~4900N |
| 极限压力 | Critical Load | 20N | 294N | 1470N | 7350N |
| 精确度 | Accuracy | ±2%(of full scale) | |||

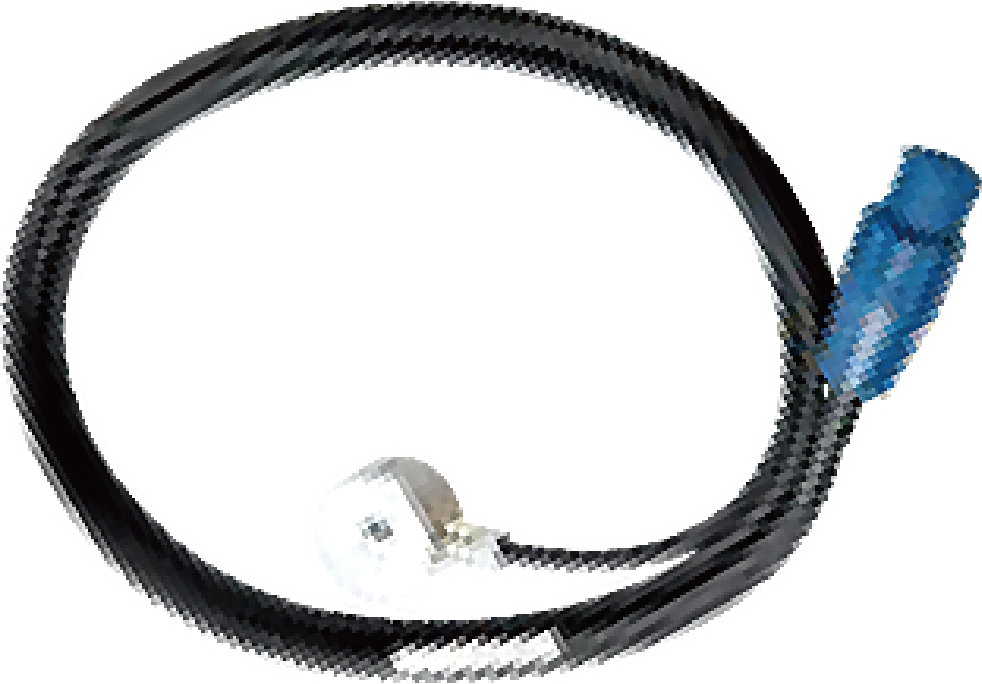

设备组装用压力传感器 Pressure Sensor for Incorporation into Equipment
| 项目 | Items | TJS-1R | TJS-20R | TJS-100R | TJS-100A-NA124 | TJS-500A-NA126 |
| 测量范围 | Measurement Range | 0~10N | 0~196N | 0~980N | 0~980N | 0~4900N |
| 极限压力 | Critical Load | 20N | 294N | 1470N | 1470N | 7350N |
| 精确度 | Accuracy | ±3%(of full scale) | ||||
| 适配系统焊头 | Applicable Welding Head |
NA-121,122,123 NA-131,132,142 |
NA-124 NA-125 |
NA-126 | ||
❖ 组装到系统焊头内时另外需要垫片配件。
A pusher is optionally required for intrgration into the Welding Head.

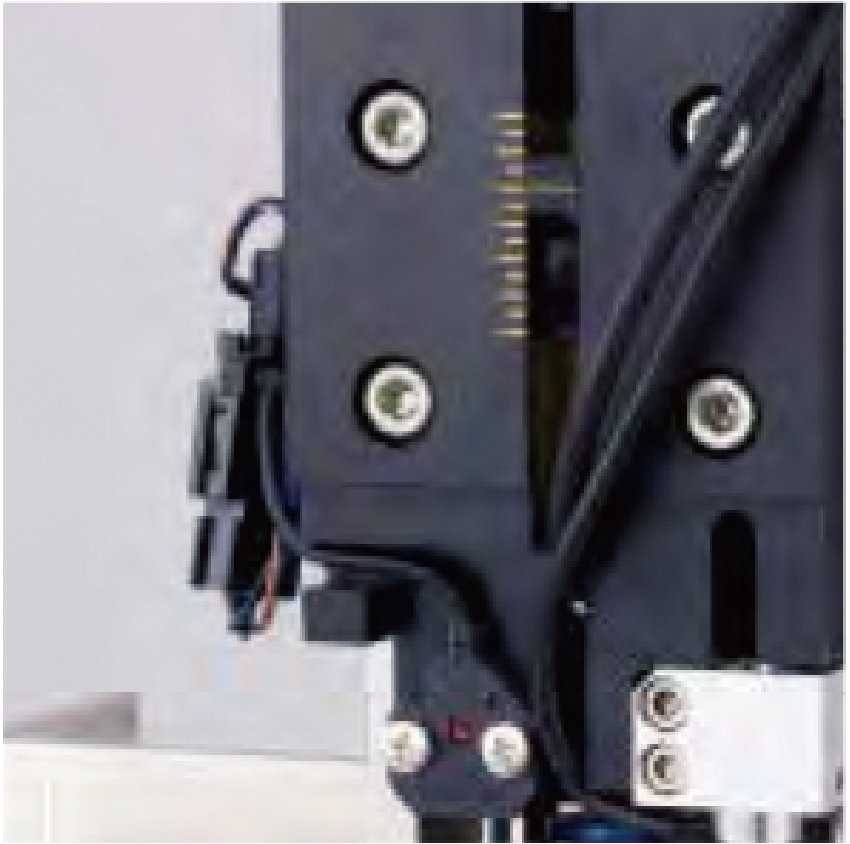

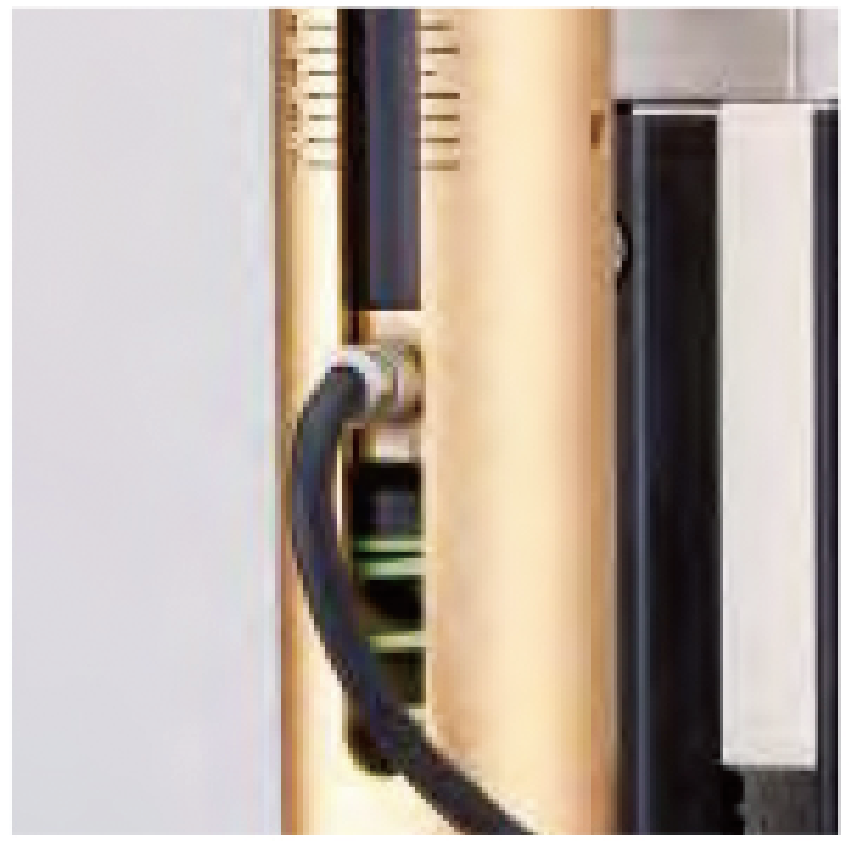

系统焊头组装实例 Example for integration of the sensors into the Welding head
